When a company needs to transport industrial machinery, steel structures, transformers, or any other oversized load, one of the first factors to consider is the dimension limits. Exceeding the maximum dimensions permitted under abnormal load regulations on national roads means the operation is no longer considered standard transport and instead qualifies as special transport, subject to specific legal requirements.
What are the abnormal load limits and what does the regulation cover?
The abnormal load limits refers to the maximum dimensions that a vehicle, or a vehicle together with its load, may have in order to travel on public roads. These limits primarily concern height, width, and length, although they are also closely linked to the maximum authorised gross weight of the vehicle combination.
If any of these limits are exceeded, the transport operation becomes subject to specific conditions, which may include obtaining special permits, planning the route in advance, or using escort vehicles.
Maximum dimensions allowed without a special permit
Spanish legislation establishes maximum dimensions for road vehicles that may circulate without the need to obtain a special permit for exceeding dimensional limits.
The main limits are:
- Maximum width: 2.55 metres for most vehicles.
- Maximum height: 4.00 metres.
- Maximum length: depending on the type of vehicle or combination, up to 16.50 metres for articulated vehicles and 18.75 metres for road trains.
These figures represent the general legal limits, although certain exceptions apply to specific vehicle categories or types of cargo. Exceeding any of these dimensions does not necessarily make the transport impossible, but it does require careful planning, appropriate permits, and specialised execution.
When is a load considered special transport?
A load is classified as special transport when, due to its dimensions or weight, it cannot comply with the legal limits established for standard road transport and must therefore be assessed on a case-by-case basis.

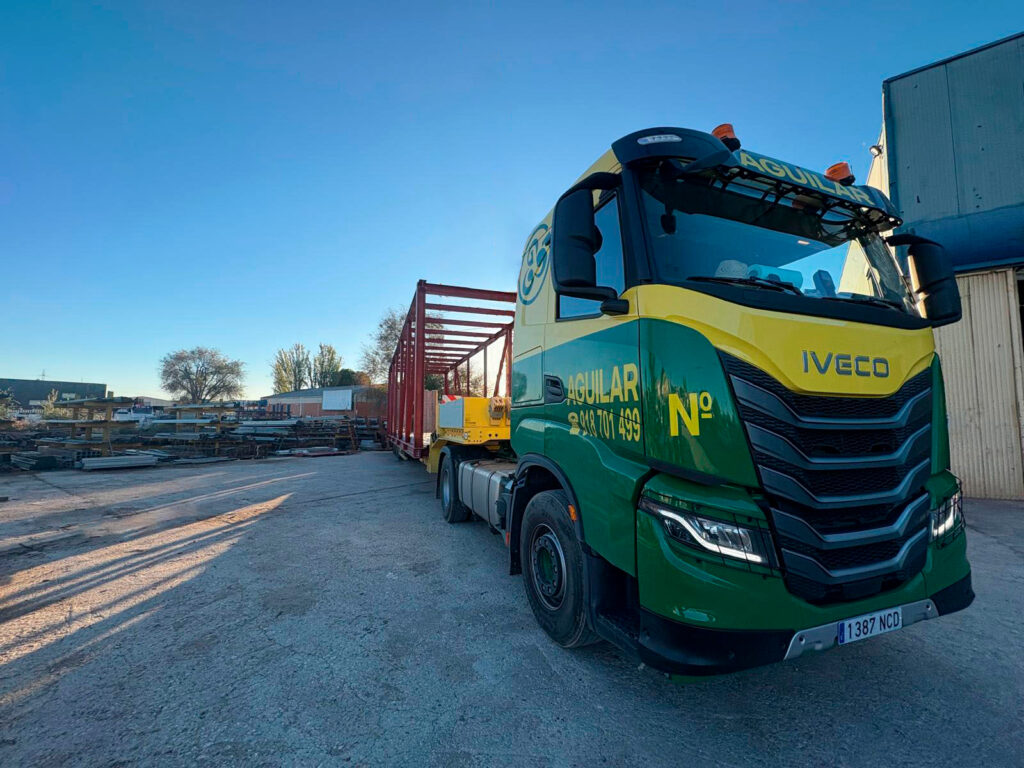

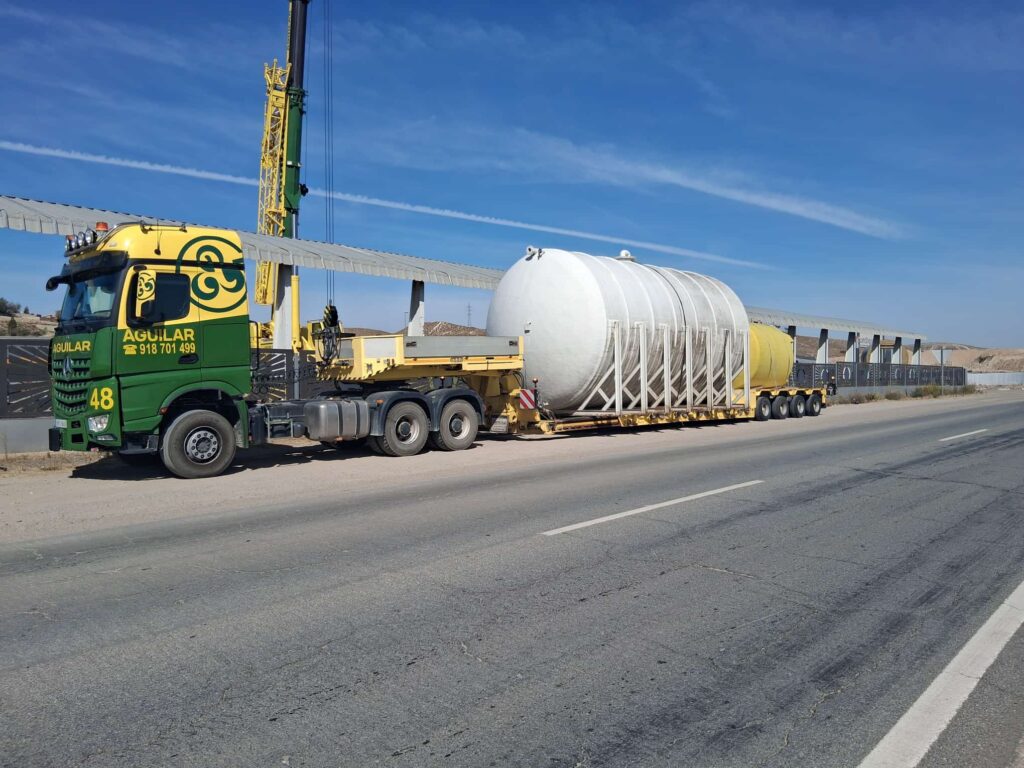

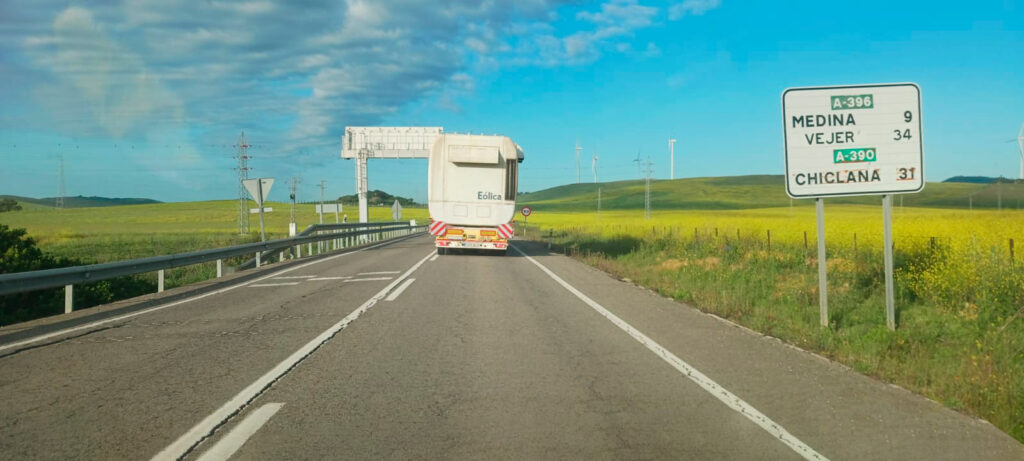

Typical examples include excavators, mobile cranes, electrical transformers, industrial tanks, oversized steel beams, precast concrete elements, and wind turbine components.
Special movement authorisations (ACC)
Whenever a transport operation exceeds the maximum legal dimensions or weights, it is necessary to obtain a Special Movement Authorisation (ACC – Autorización Complementaria de Circulación). This administrative permit authorises vehicles or vehicle combinations that exceed the standard dimensional or weight limits to circulate legally.
Depending on the characteristics of the operation, authorisations may be issued for a single journey or for multiple journeys within a specified period, provided the authorised conditions remain unchanged.
Obtaining an ACC requires a prior route assessment to ensure that the road infrastructure can accommodate the dimensions of the load and that the journey can be carried out safely.
What happens if the abnormal load limits are exceeded without authorisation?
Operating a vehicle that exceeds the legal dimensional limits without the required authorisation may result in administrative penalties, vehicle immobilisation, and liability for any damage caused to road infrastructure or third parties.
Whenever a load exceeds the standard legal dimensions, it is essential to assess the route, obtain the necessary permits, and implement all required safety measures. Proper planning helps prevent delays, optimise transport operations, and ensure full compliance with current legislation. At Aguilar, we have extensive experience in special road transport. Our team assesses every project individually, selects the most suitable vehicle, plans the safest and most efficient route, and manages all the necessary permits and logistics to ensure that every operation is carried out safely and in full compliance with current regulations.
